S1000D

S1000D on Ironmark

Structured authoring/editing for S1000D issues 4.2, 5.0, and 6.0. Data modules, PM, DDN, BREX, CIR, applicability, and IADS in-and-out — all in one browser session. Structured + visual editors, per-version templates and descriptors, project-scoped SDM packages.

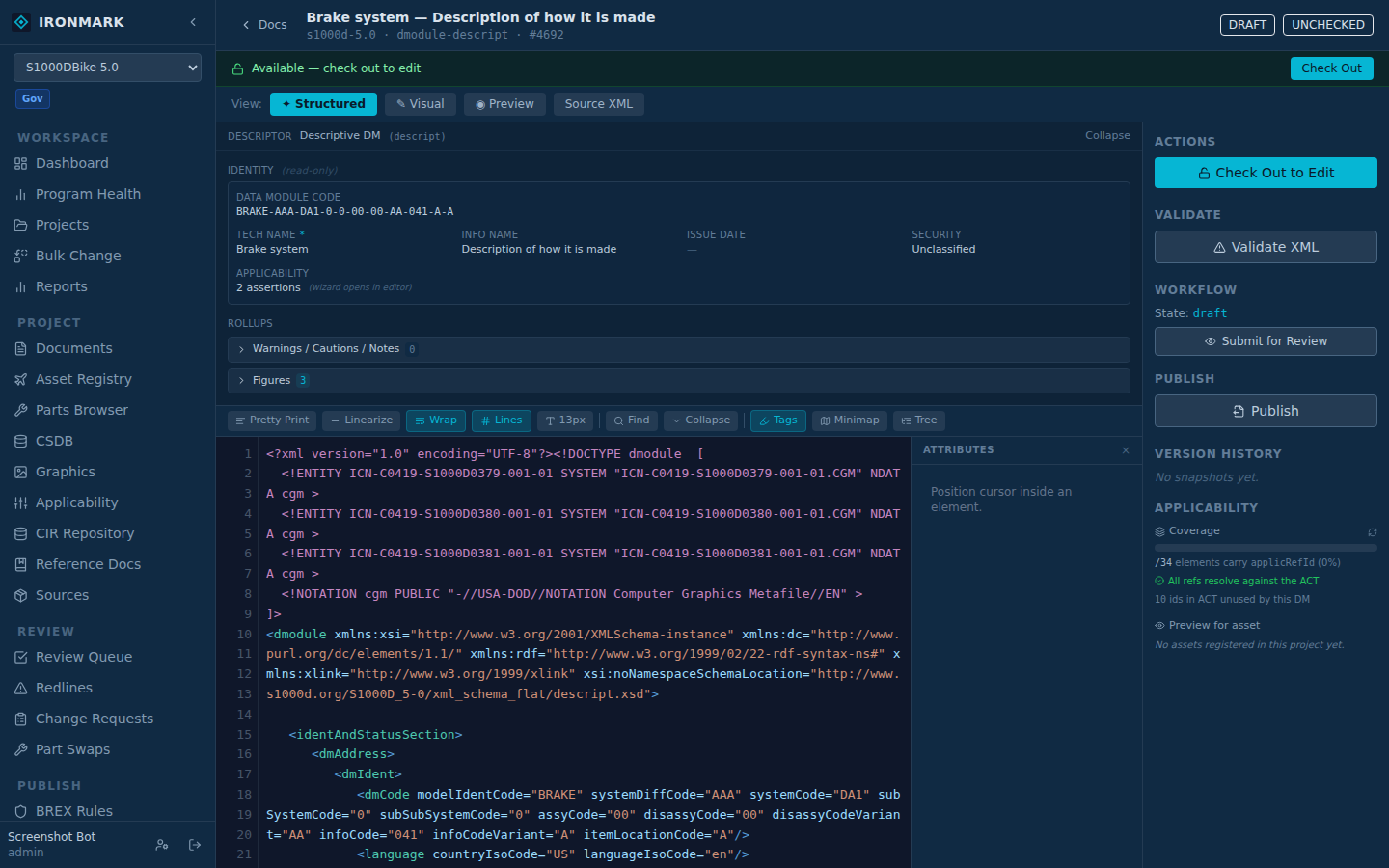

Ironmark's structured editor rendering an S1000D 5.0 descript module: schema-aware widgets on the left, XML tree on the right, validation status inline. — Ironmark's structured editor on an S1000D 5.0 descript module — schema-aware widgets, project-scoped SDM, live validation.

What's supported

Issues	4.2, 5.0, 6.0 — per-version SDMs with matching templates + descriptors
Root elements	dmodule, pm, ddn, dml, comment, brex, scormcontentpackage — all with dedicated handling or first-class UI
DM types	proced, descript, fault, ipd, brex, wrng, sb, schedul, brdoc, learning, process, scocontent, wrngdata, wrngflds — first-class or template + descriptor scaffolded
Schemas	Manifest entry points + S1000D flat-schema resolution from `xml_schema_flat/`. DOCTYPE-referenced DTD as a fallback path.
DMC handling	DMC rename cascades filename, DDN references, PMC xrefs, and CSDB entries atomically. No orphaned dmRef targets.
Publishing	PDF via WeasyPrint or XSL-FO. IETP viewer bundled. IADS export as combined `.iads` or ZIP of per-project packages.

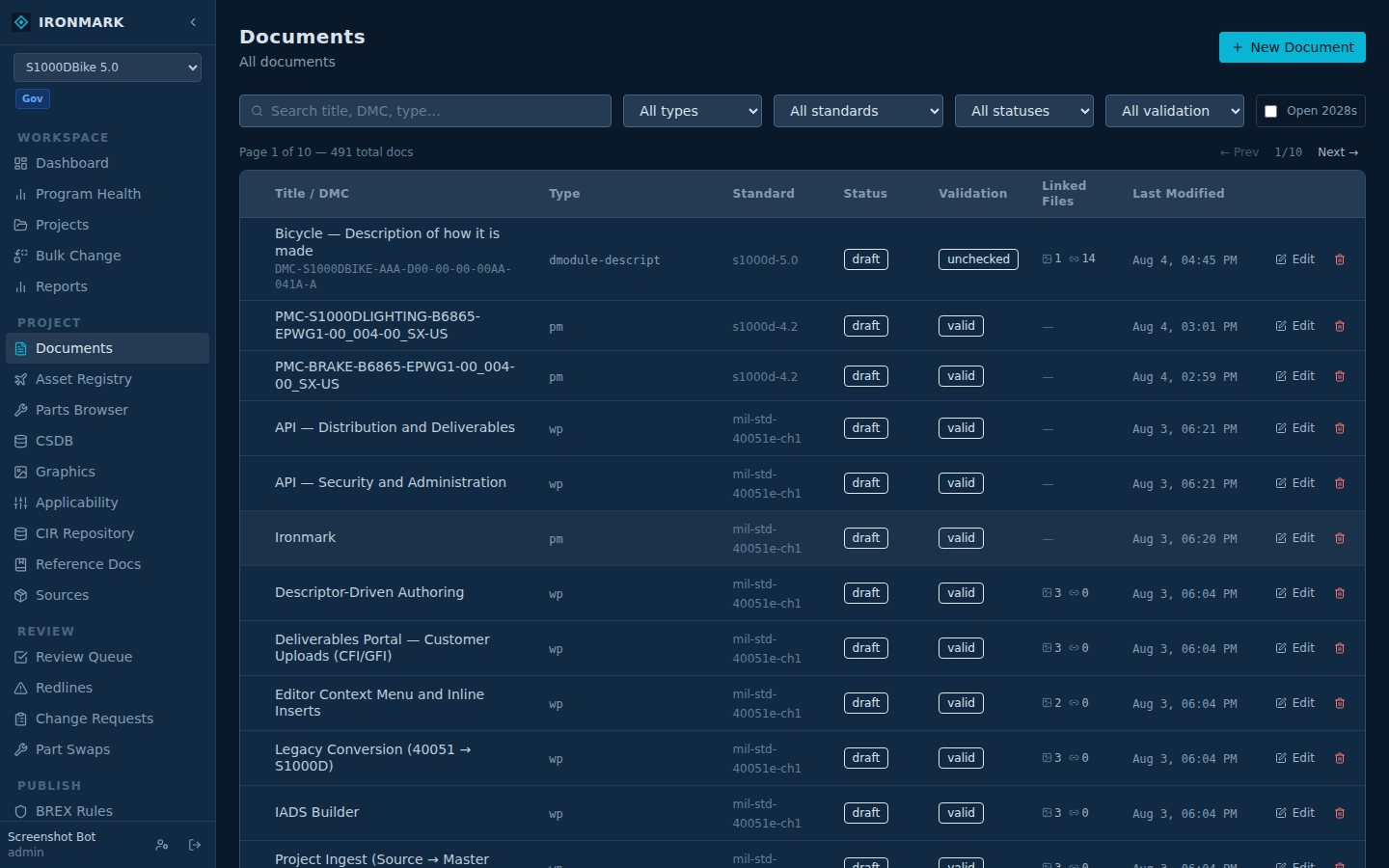

Documents list — every DM in the project with title, DMC, doc type, workflow state, and last-modified column. — Documents list — every DM in the project. Filter by doc type, workflow state, or SDM; drag-and-drop upload; batch operations.

Coverage

Some constructs have a dedicated editor with schema-aware widgets; others round-trip through the structured editor with template + descriptor scaffolding.

First-class UI

DM editor (structured + visual)
IPD / parts catalog
BREX rule surface
Applicability wizard (CCT / ACT / PCT)
PM Builder
CIR: parts, warnings, cautions, tools, supplies, personnel, prerequisites
DDN generation from delivery events
IADS import + export
TM Families (paired-manual grouping)

Structured editor

Fault, proced, descript
Learning, process
Warning, service bulletin, schedul
Business rules document (brdoc), DML
SCO content, warning data + fields

Deliberately out of scope

SCORM package build (import + validate only)
RailDex / ShipDex overlays beyond BREX

What ships in a fresh S1000D project

Per-version SDM package — schemas, templates, descriptors, publish stylesheets
BREX starter — structural rules matching the project's schema entry points
Applicability wizard — attribute-name scaffolding for the chosen spec version
Empty CIRs — warnings/cautions/tools/supplies/personnel ready to populate or import
Publish stylesheets — WeasyPrint CSS + XSL-FO alternates, project-level overrides available
